Chevrolet LSX 454 race engine for sale

Chevrolet LSX 454 race engine for sale

Product Overview

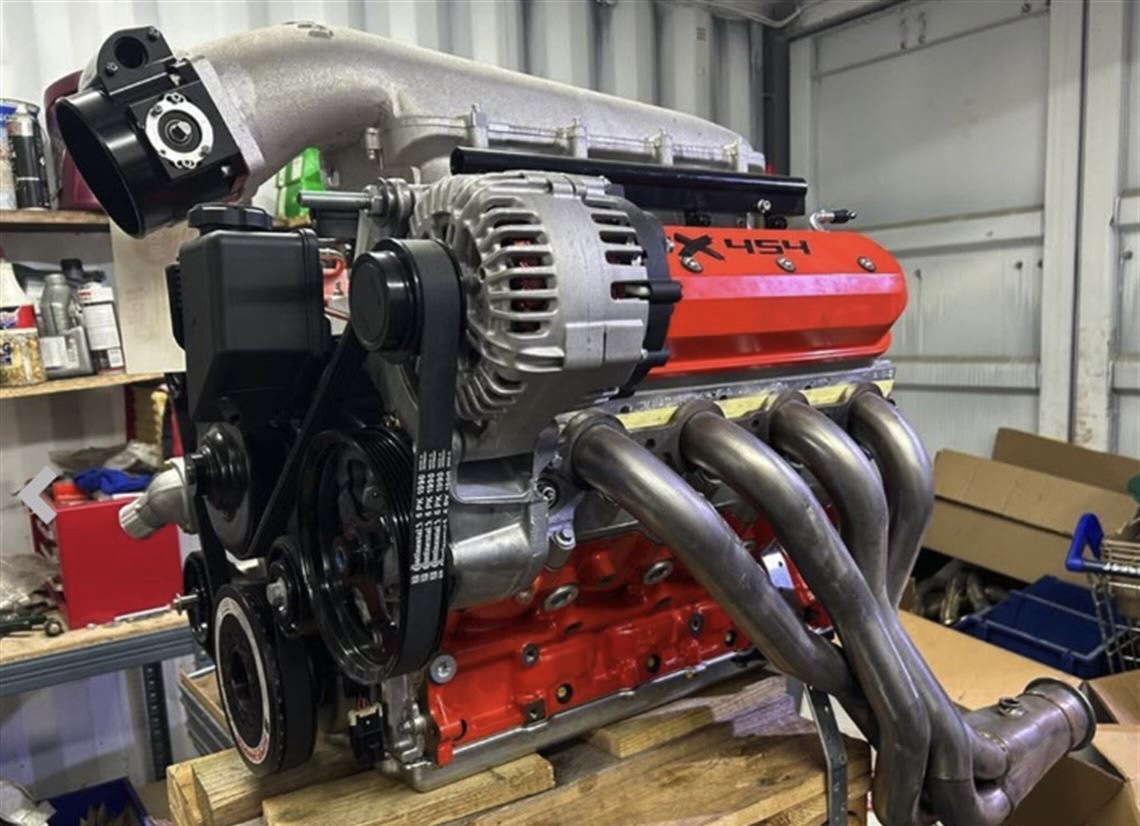

For sale is a brand-new, never-used Chevrolet LSX 454 cubic inch (7.4-litre) race enginewith an estimated output of 700 horsepower. This is a complete, fully equipped package — not a bare engine — supplied with an extensive list of ancillaries, induction, management, and ancillary components that make it a genuinely turn-key ready-to-install race engine.

The engine is built around the GM LSX 454 block — the dedicated cast-iron racing block produced by General Motors Performance Parts specifically for competition use — representing the most robust and capable foundation available within the LS engine family. Paired with a Holley Terminator X engine management system, an Aviaid 4-stage dry sump, MSD ignition coils, and a full complement of ancillaries, this is a complete, competition-specification powertrain package requiring only installation to be race ready.

Engine Specification

Complete Components List

The following components are included with this engine, supplied new. Part numbers are provided for buyer reference and independent verification:

Technical Overview

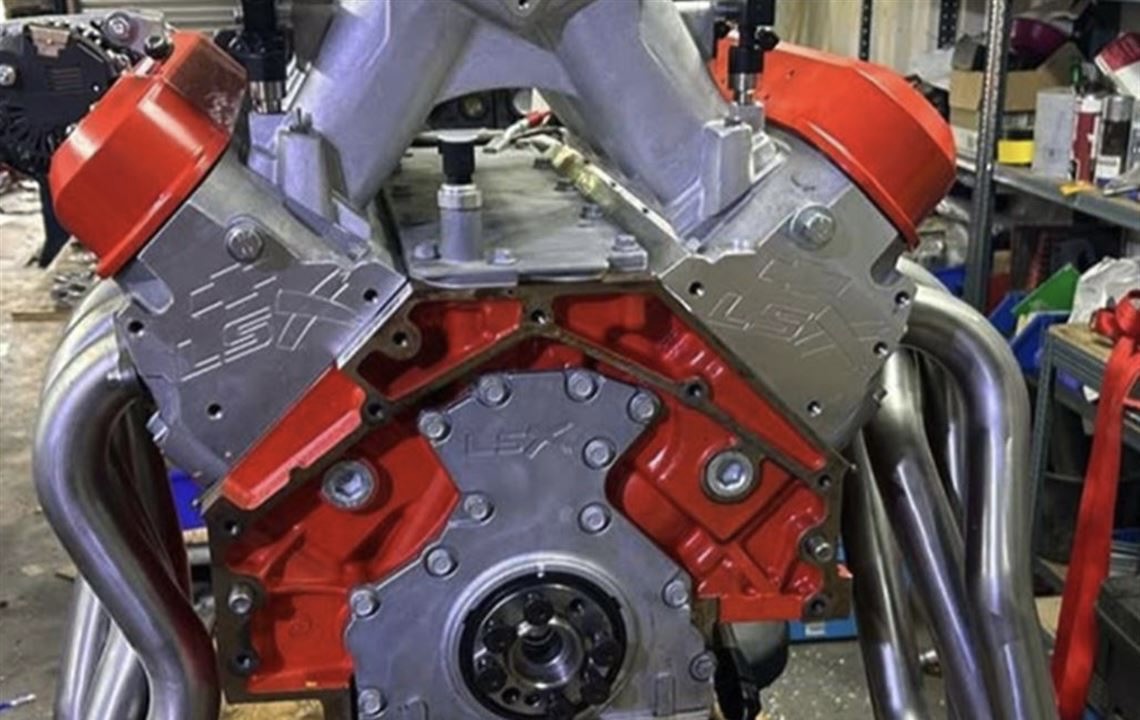

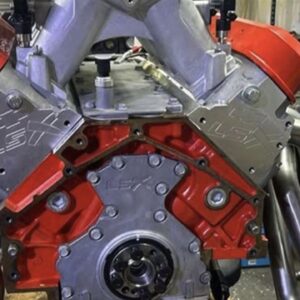

The GM LSX 454 block is the definitive platform for serious competition use within the LS engine family. Produced by General Motors Performance Parts as a purpose-built racing component — rather than adapted from a road car casting — the LSX block features thicker cylinder walls, revised coolant passages, priority main oiling, and a substantially reinforced bottom end architecture capable of withstanding the cylinder pressures and rotational forces associated with sustained high-output competition use. At 454 cubic inches (7.4 litres), the displacement provides the swept volume required to achieve 700 horsepower in naturally aspirated form without the thermal and mechanical stress associated with forced induction at equivalent outputs.

Engine management is provided by the Holley Terminator X ECU — a self-learning, fully programmable engine control unit widely used in competition and high-performance applications throughout North America and Europe. The Terminator X provides sequential fuel injection control for all eight cylinders, integrated ignition timing management, and extensive datalogging capability, with a straightforward tuning interface accessible to both professional calibrators and experienced self-tuners.

The Aviaid 4-stage dry sump systemeliminates oil surge under the lateral, braking, and acceleration loads of competition driving — a critical requirement for any serious circuit, drag, or endurance racing application. The four-stage pump configuration provides three dedicated scavenge stages and one pressure stage, ensuring consistent oil supply to the engine at all times regardless of dynamic loading. The dry sump system also lowers the engine’s centre of gravity by eliminating the conventional sump, providing a handling benefit in addition to the lubrication advantage.

MSD coils and matched injectors complete an ignition and fuelling specification that is consistent with the engine’s power level and competition intent throughout.

About the Chevrolet LSX Race Engine

The Chevrolet LSX platform is one of the most widely used and extensively developed V8 engine architectures in modern motorsport. Derived from GM’s celebrated Gen IV small-block family, the LSX has been used across drag racing, circuit racing, hillclimb, rally, endurance, and unlimited performance applications worldwide, building a reputation for exceptional power density, strong aftermarket support, and remarkable durability under sustained competition conditions.

The LSX 454 block in particular occupies a position at the top of the LS competition hierarchy — the largest displacement, most heavily reinforced production racing block available within the family, and the platform of choice for builders targeting outputs from 600 horsepower to well in excess of 1,000 horsepower depending on specification. Its cast-iron construction, while heavier than aluminium alternatives, provides the dimensional stability and bore integrity required for sustained high-output naturally aspirated or boosted operation at the limits of the architecture.

Ideal For

• Circuit racing builds requiring a proven, high-output naturally aspirated V8 package
• Drag racing and quarter-mile competition
• Kit car, single-seater, and bespoke chassis builds specifying LS power
• Endurance and sprint motorsport in LSX-eligible classes
• High-performance road, track day, and time attack builds
• Buyers seeking a complete, turn-key engine package without the need to source individual components separately

Purchasing & Enquiries

This Chevrolet LSX 454 race engine is available for immediate sale. It is brand new and has never been installed or run. All components listed above are included as part of the package. Part numbers are provided for independent verification of component specification.
